Available on Request
R32 AIM Act
Authorized DealerFree FreightAHRI CertifiedAIM Act Compliant
DaikinGas/Electric Packages

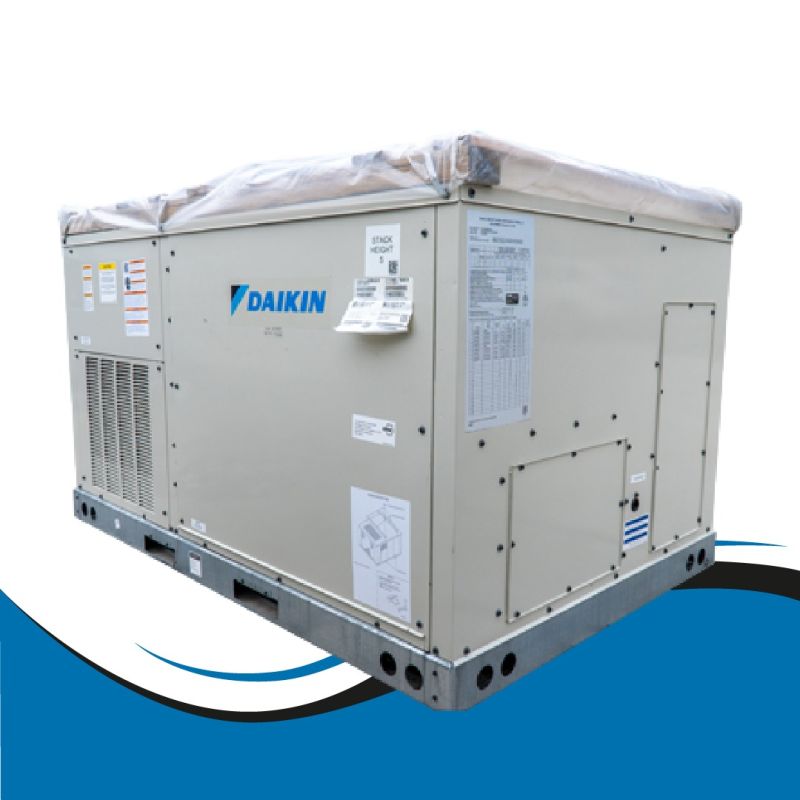

Daikin 3 Ton 90,000 BTU 13.40 SEER2 Gas/Electric Commercial Packaged Unit - 208/230V 1Phase - R32
3 Ton
Cooling Capacity
36,000 BTU
BTU Output
13.4 SEER2
Efficiency Rating
R32
Refrigerant
Single Phase
Electrical Phase
R32 Compliant — AIM Act Ready for new commercial installations
SKU: DSG0361DH00001S· MPN: DSG0361DH00001S
$0.00
Qty:
1
Full submittal package available — spec sheet, AHRI certificate, installation manual and wiring diagram. Download below or request via email.
Or call 1-800-XXX-XXXX — HVAC specialists available Mon–Fri 7am–6pm CT
Authorized Daikin Commercial Dealer
Ships in 3–7 Business Days via Freight Carrier
Manufacturer Warranty Included
Full Submittal Documentation Package
Product Description
This 3-ton gas/electric packaged unit features an impressive 13.4 SEER2 rating, making it an efficient choice for small to medium-sized commercial buildings. The use of R32 refrigerant, a more environmentally-friendly option, aligns with modern sustainability goals. Designed for easy installation and maintenance, this system is well-suited for retail stores, offices, and other commercial spaces that require reliable and energy-efficient climate control.
Specifications
Cooling Capacity3 Ton (36,000 BTU)
SEER2 Rating13.4
RefrigerantR32
PhaseSingle Phase
Voltage208 / 230 V. 1 Phase 60 Hz
Unit Weight600 lbs
Dimensions (LxWxH)38.8"x73.9"x48.1"
Refrigerant ComplianceR32 — AIM Act Compliant
R32 Refrigerant — AIM Act Compliance
What R32 Means for Your Project
R32 is a low-GWP refrigerant approved for new commercial installations under EPA AIM Act regulations. With a Global Warming Potential (GWP) of 675 — significantly lower than R410A's 2,088 — R32 meets current and upcoming phase-down requirements. R32 is compatible with POE oil and requires standard handling procedures for A2L refrigerants.
Compliance Checklist
Approved for new commercial builds post-2025
Compliant with EPA AIM Act phase-down schedule
GWP: 675 (vs R410A: 2,088)
Reclamation guidelines apply — consult your refrigerant recovery contractor
